Outdoor LED Wall Complete Set
Outdoor LED Wall Complete Set: weatherproof, ready to deploy

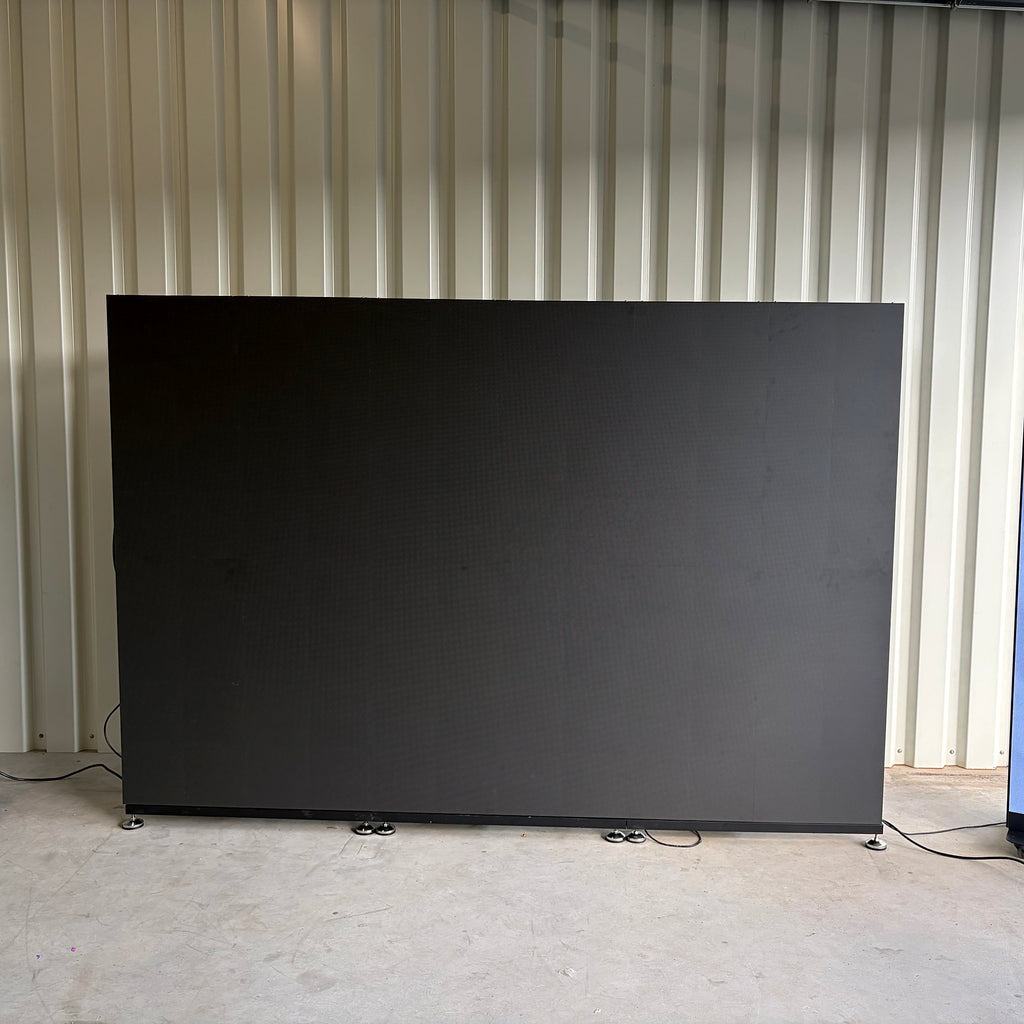

Our Outdoor LED Wall complete sets ship as a fully assembled LED surface built from modular P2.97 outdoor panels (500 × 1000 mm, IP65, ≥ 4500 nits) in five fixed sizes. Sizes in this overview are given as width × height. Pick your size, every component is included.

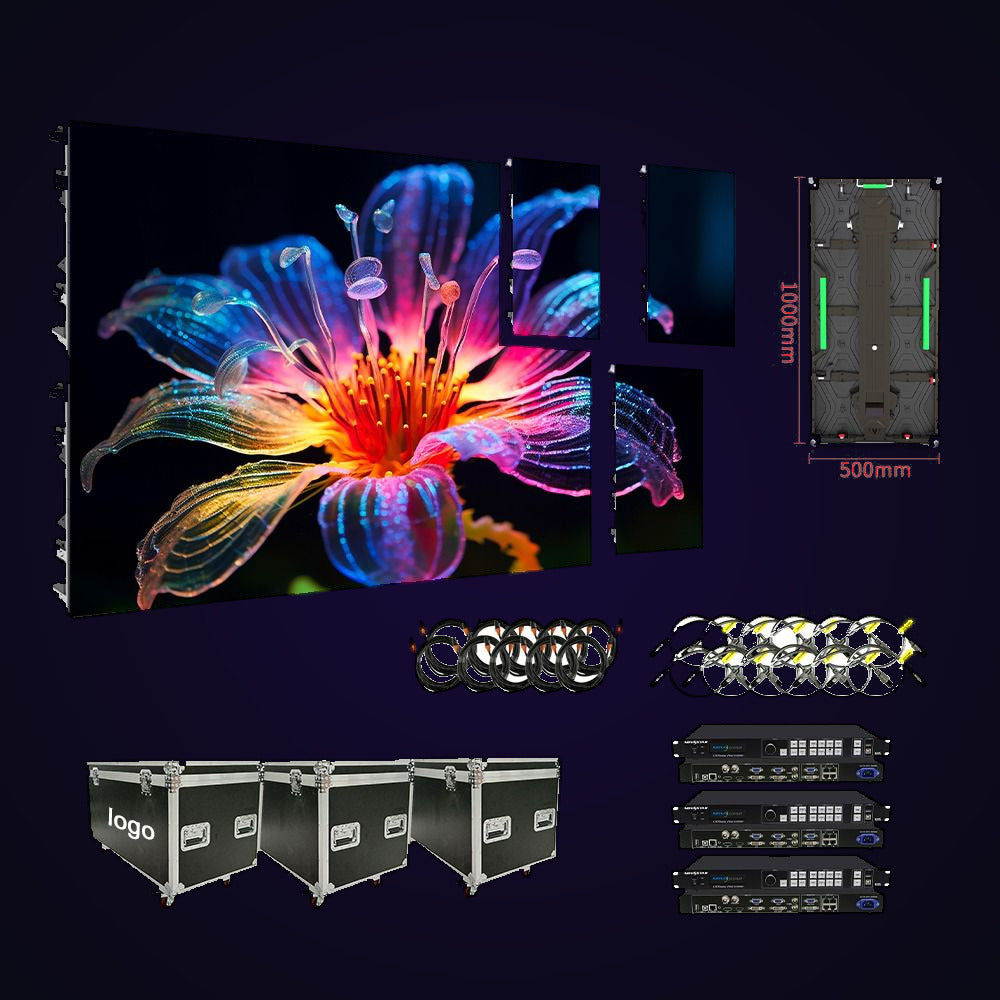

What's included
- P2.97 outdoor LED panels in the selected size (500 × 1000 mm modules, driver IC ICND2153S, IP65, water- and dust-tight, lightweight aluminium cabinet, stainless-steel quick locks, approx. 15 kg per panel, equipment-dependent)
- NovaStar processor VX600 Pro
- HDMI, power and data cables

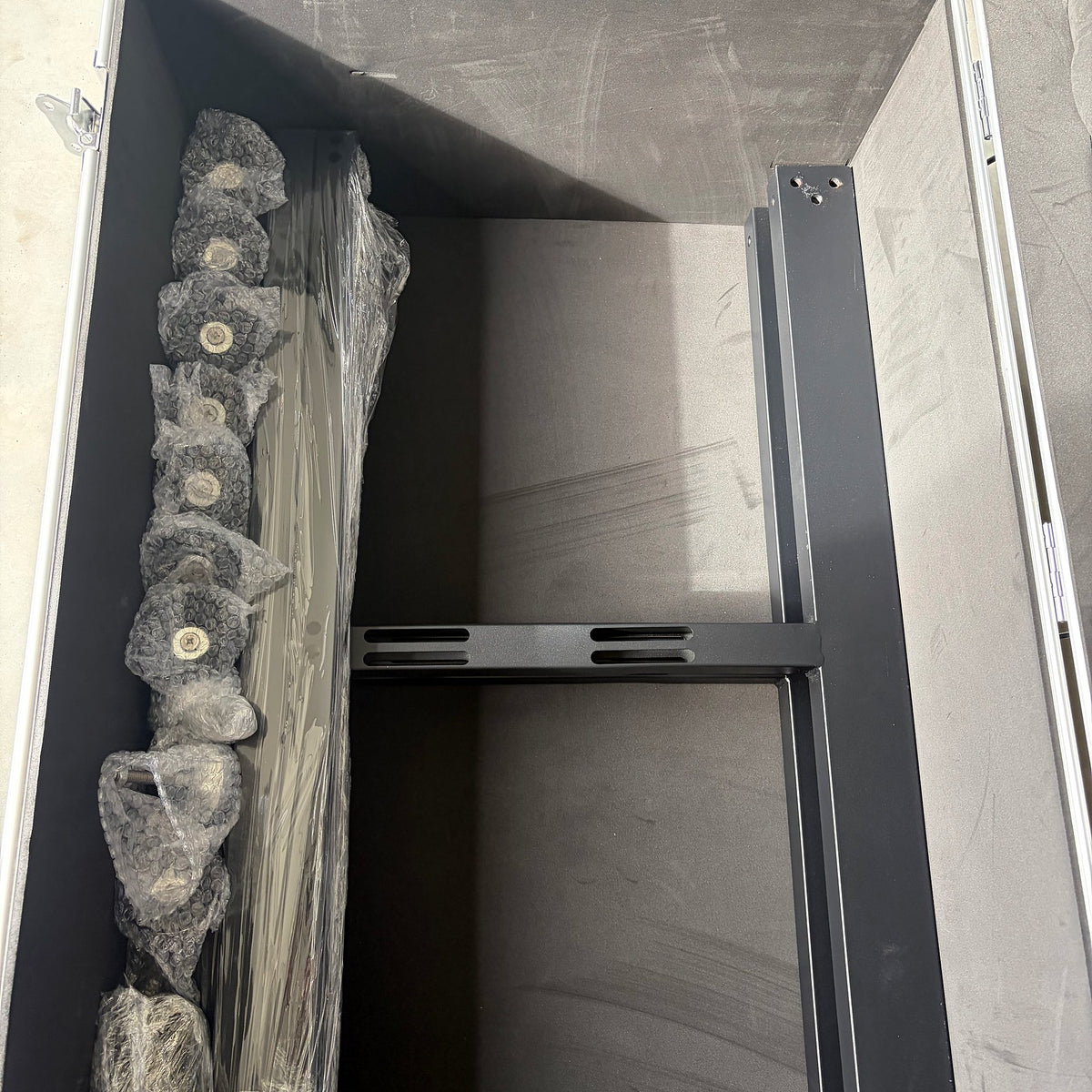

- Rigging/hanging structure (hanging bars with carabiners) including spares

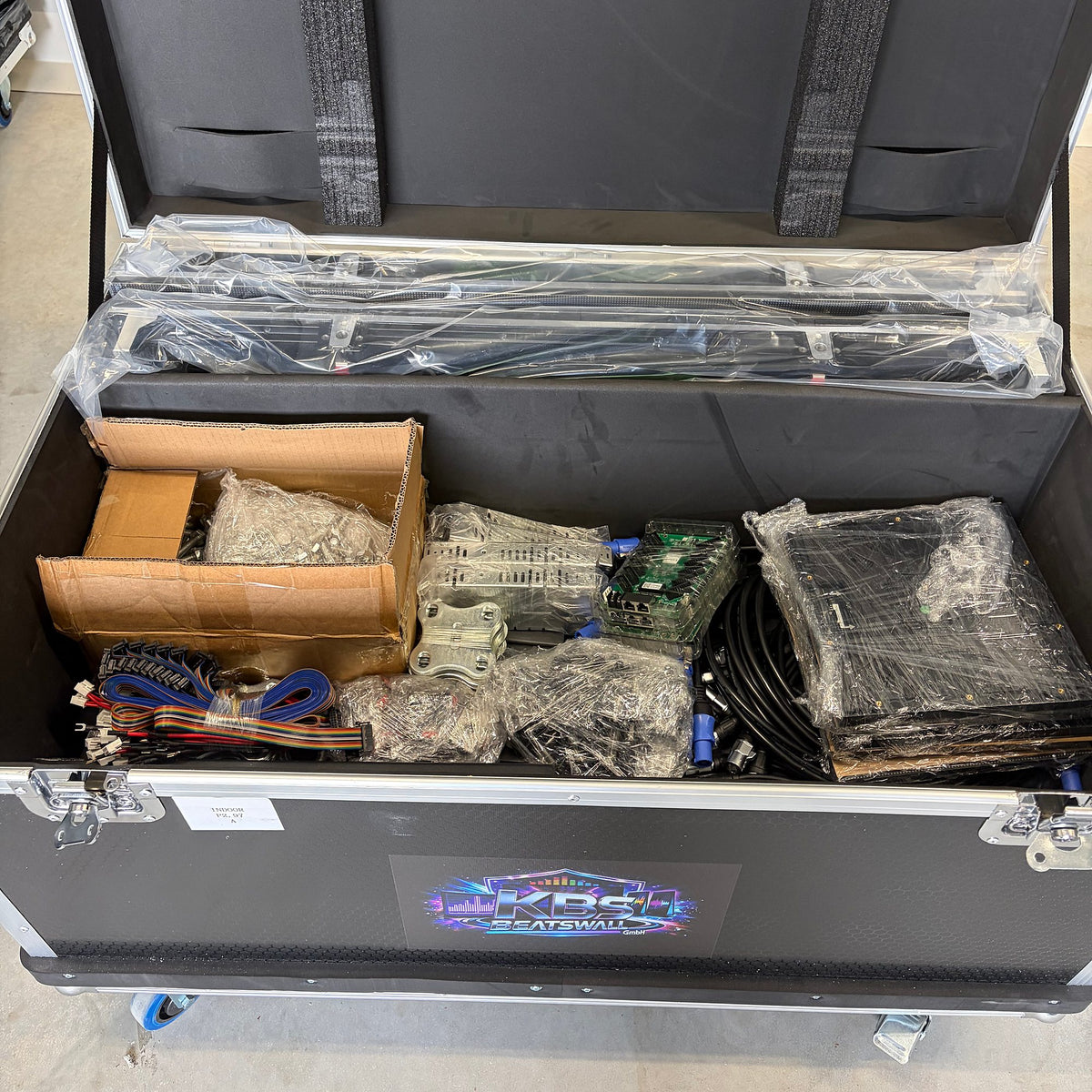

- Spare LED modules and receiving cards
- Spare power supplies and cable set

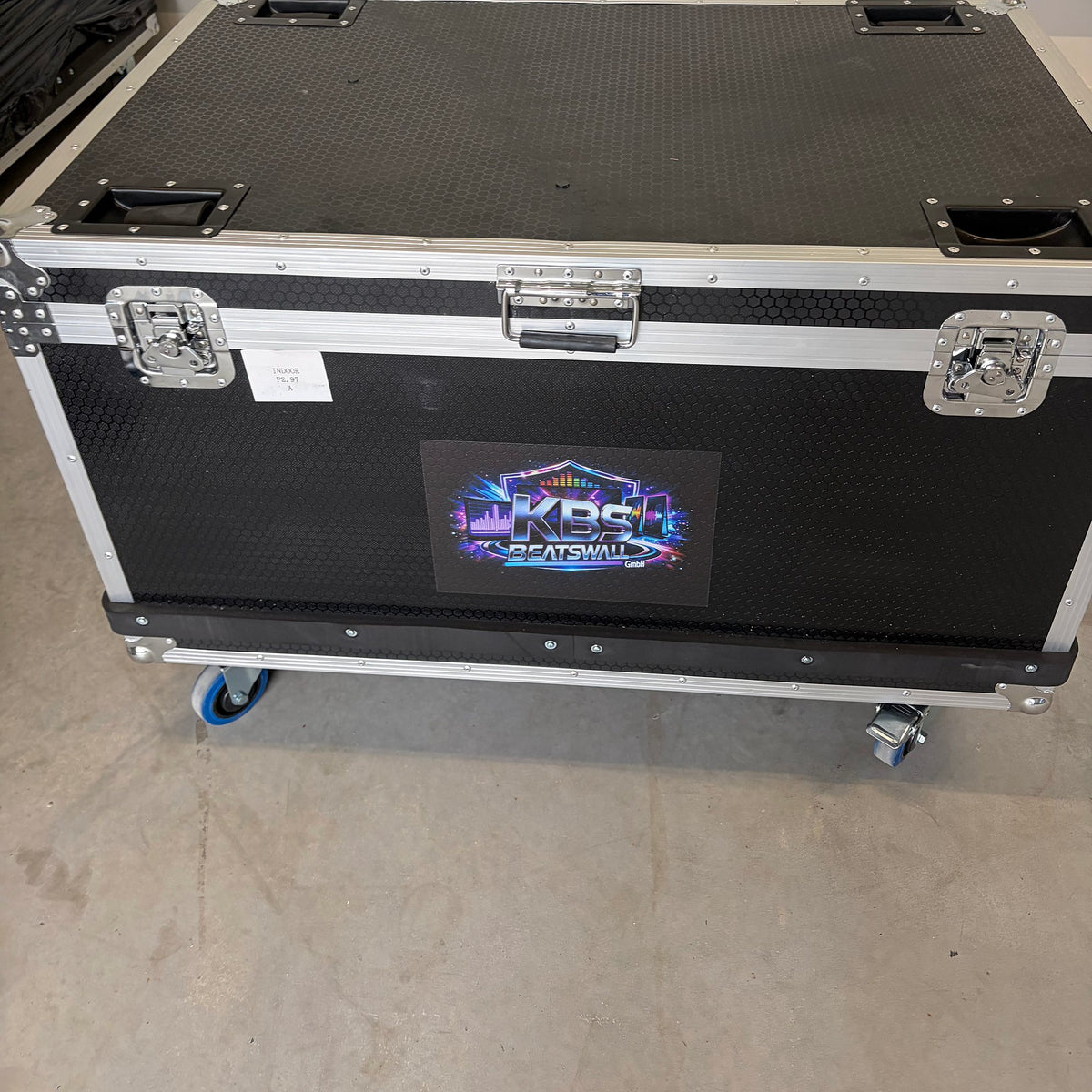

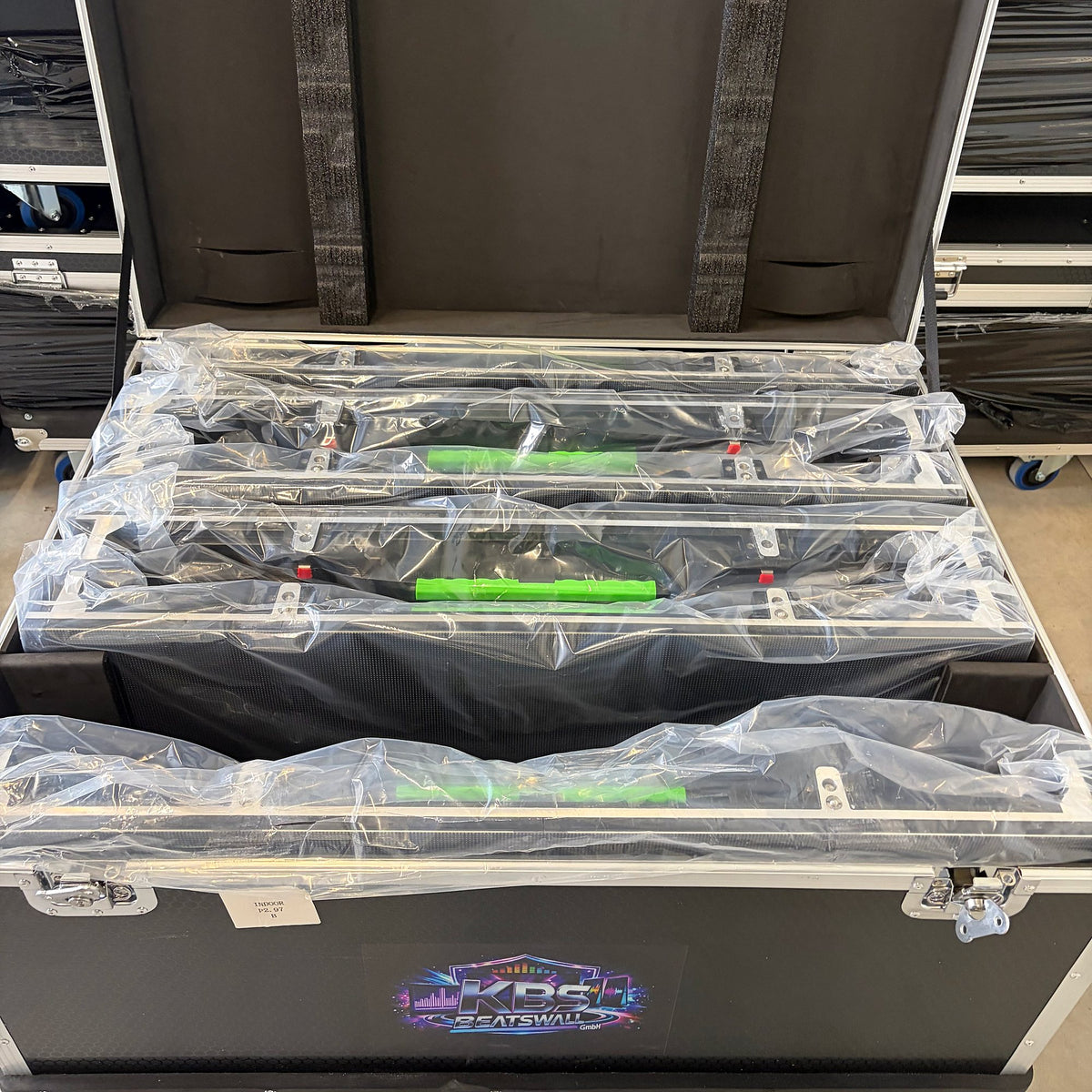

- Padded flight cases
- Accessories
- Delivery and setup

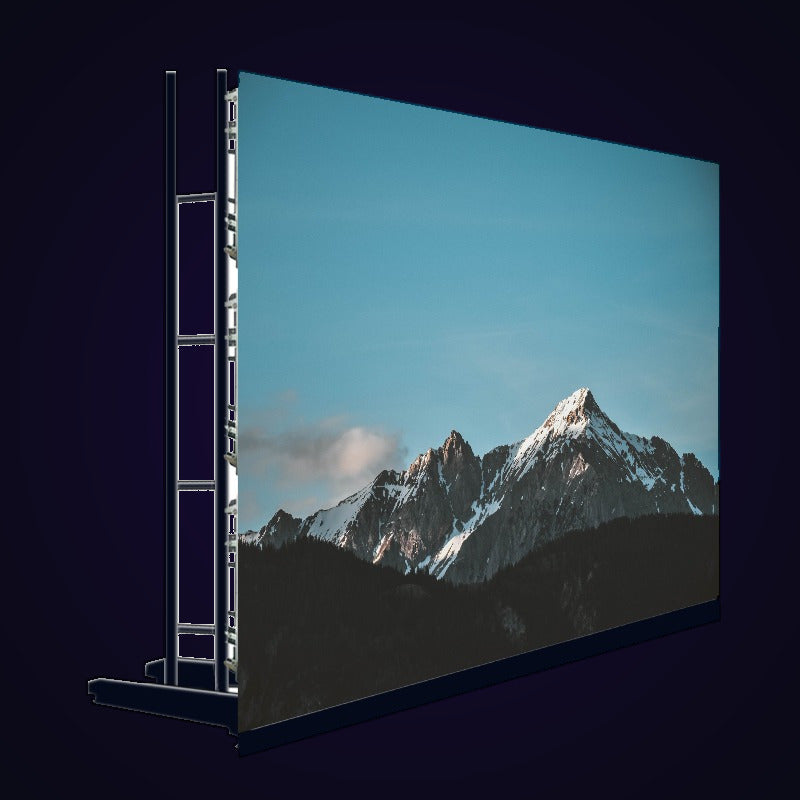

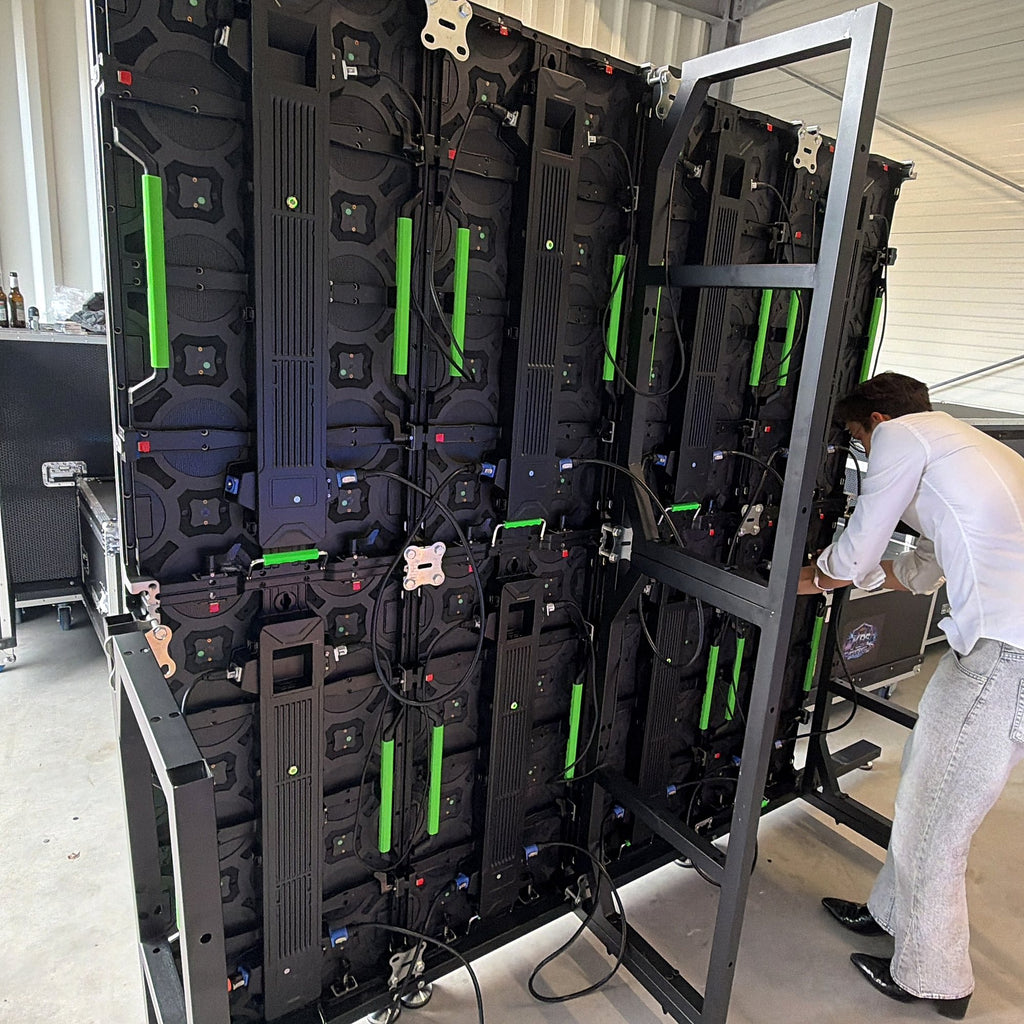

Mounted hanging (rigging/hanging bars) or free-standing (ground support). CE/RoHS, manufactured to ISO 9001, 72-hour function test, up to 100,000 operating hours. 3-year warranty on current sale systems.
Content & playback
Video, images, presentations, ads, live image and camera feeds, laptop playback, event visuals and sponsor ads, managed through the NovaStar processor.
Available sizes (width × height)
| Size | Area | Panels (500 × 1000 mm) | Price |
|---|---|---|---|
| 3 × 2 m | 6 m² | 12 | €9,500 |
| 3 × 2.5 m | 7.5 m² | 15 | €11,875 |
| 4 × 3 m | 12 m² | 24 | €15,000 |
| 5 × 3 m | 15 m² | 30 | €18,000 |
| 6 × 3 m | 18 m² | 36 | €21,000 |
Five fixed complete-set sizes, identical to the indoor wall of the same size, delivery and setup included.
Technology at a glance
| Feature | Value |
|---|---|
| Pixel pitch | 2.97 mm |
| Panel size | 500 × 1000 mm (0.5 m²) |
| Driver IC (LED module) | ICND2153S |
| Refresh rate | ≥ 7680 Hz |
| Brightness | ≥ 4500 nits |
| Ingress protection | IP65 (water- & dust-tight) |
| Controller | NovaStar VX600 Pro |
| Cabinet | lightweight aluminium |
| Locking | stainless-steel quick locks |
| Panel weight | approx. 15 kg, equipment-dependent |
| Lifetime | up to 100,000 operating hours |
| Mounting | hanging or free-standing |
Highlights
- All-weather ready: IP65, high brightness, designed for sun, rain and wind
- Plug & play set: everything you need for setup is included
- Five fixed sizes: from 3 × 2 m to 6 × 3 m

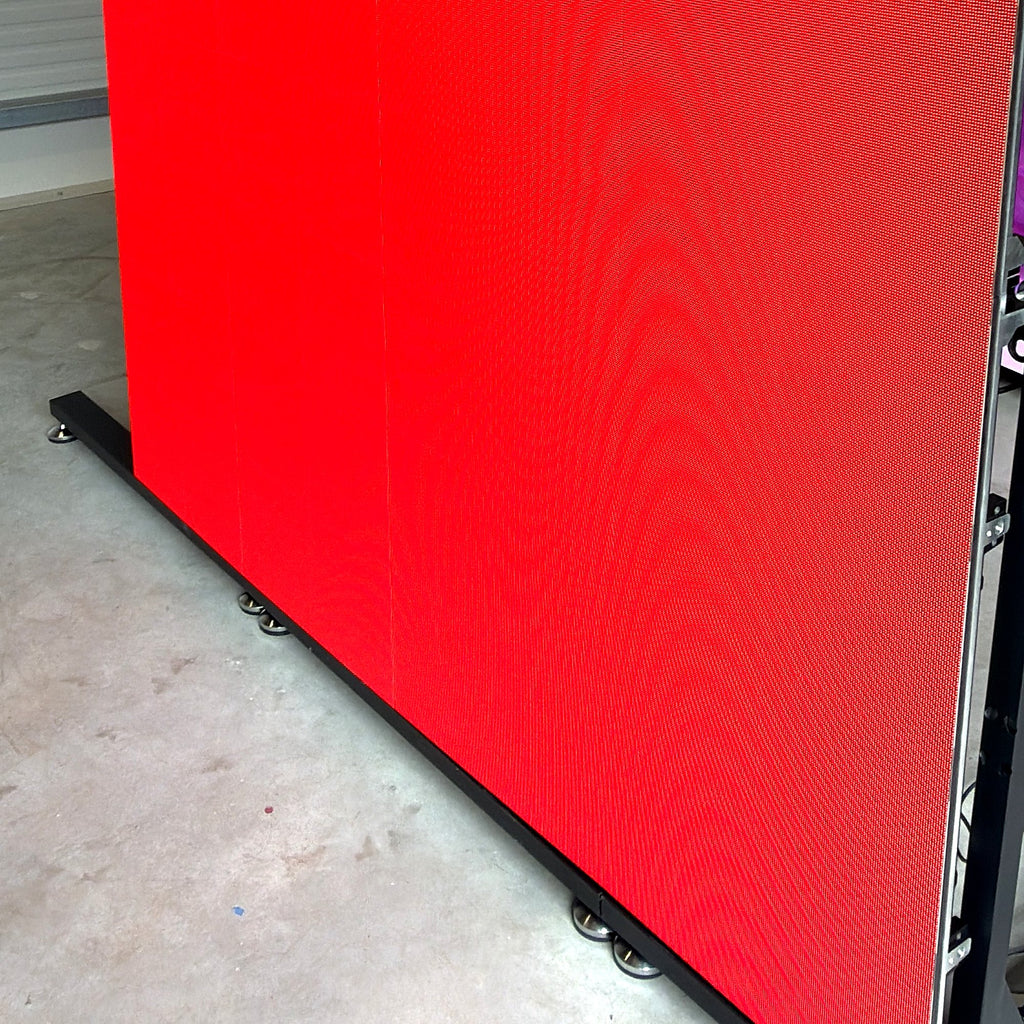

- Seamless surface: precise panel connection, no visible seams
- High-end control: NovaStar VX600 Pro for stable pro performance
- Rental-grade build: designed for frequent setup and tear-down, flicker-free on camera
- Quality assurance: CE/RoHS, manufactured to ISO 9001, 72-hour function test
- 3-year warranty on current sale systems
Use cases
Outdoor events · Festivals · Public viewing · Open-air advertising · Stage backdrops · Sports events · Live streaming and camera use
Service
Sale: Consultation, system assembly, delivery, setup, warranty and spare-parts service.
Rental (full service): Consultation, planning, delivery, setup, commissioning and teardown included; operation/support bookable on request.
Delivery and setup are included Germany-wide. See all LED walls, more on renting and buying.
- Buy: 3 × 2 m €9,500 up to 6 × 3 m €21,000, further sizes see table, delivery and setup included
- Rent: €799 / day (3 × 2 m), €1,399 / day (4 × 3 m), €2,199 / day (5 × 4 m), larger surfaces €120 / m² / day, including delivery, setup and teardown
All prices net, plus VAT.
At a glance (net, plus VAT)
- Weatherproof, water- & dust-tight
- IP65
- Brightness
- ≥ 4,500 nits
- 3 × 2 m, complete set
- €9,500
- Warranty
- 3 years
Built for outdoors
IP65 and high brightness keep your image clearly visible in sun, rain and wind, on festivals as much as open-air events.
Ask about your size
Frequently asked questions
What sizes are available for the outdoor LED wall?
3 × 2 m, 3 × 2.5 m, 4 × 3 m, 5 × 3 m and 6 × 3 m (width × height), five fixed complete-set sizes.
Is the outdoor wall weatherproof?
Yes, IP65 (water- and dust-tight) with ≥ 4500 nits brightness for good visibility even in sunlight.
What does an outdoor LED wall cost?
Sale from €9,500 (3 × 2 m) up to €21,000 (6 × 3 m). Rental €799/day (3 × 2 m), €1,399/day (4 × 3 m), €2,199/day (5 × 4 m), larger surfaces €120/m²/day, each including delivery and setup.
What's included in the complete set?
Panels, NovaStar VX600 Pro processor, HDMI, power and data cables, rigging/hanging structure including spares, spare LED modules, power supplies, receiving cards, padded flight cases, accessories, plus delivery and setup.
Is delivery and setup included?
Yes, delivery and setup are included Germany-wide for both purchase and rental. Operation/support is available on request.
