LED Screen Poster P1.86
LED Screen Poster P1.86: plug & play for reception, retail and events

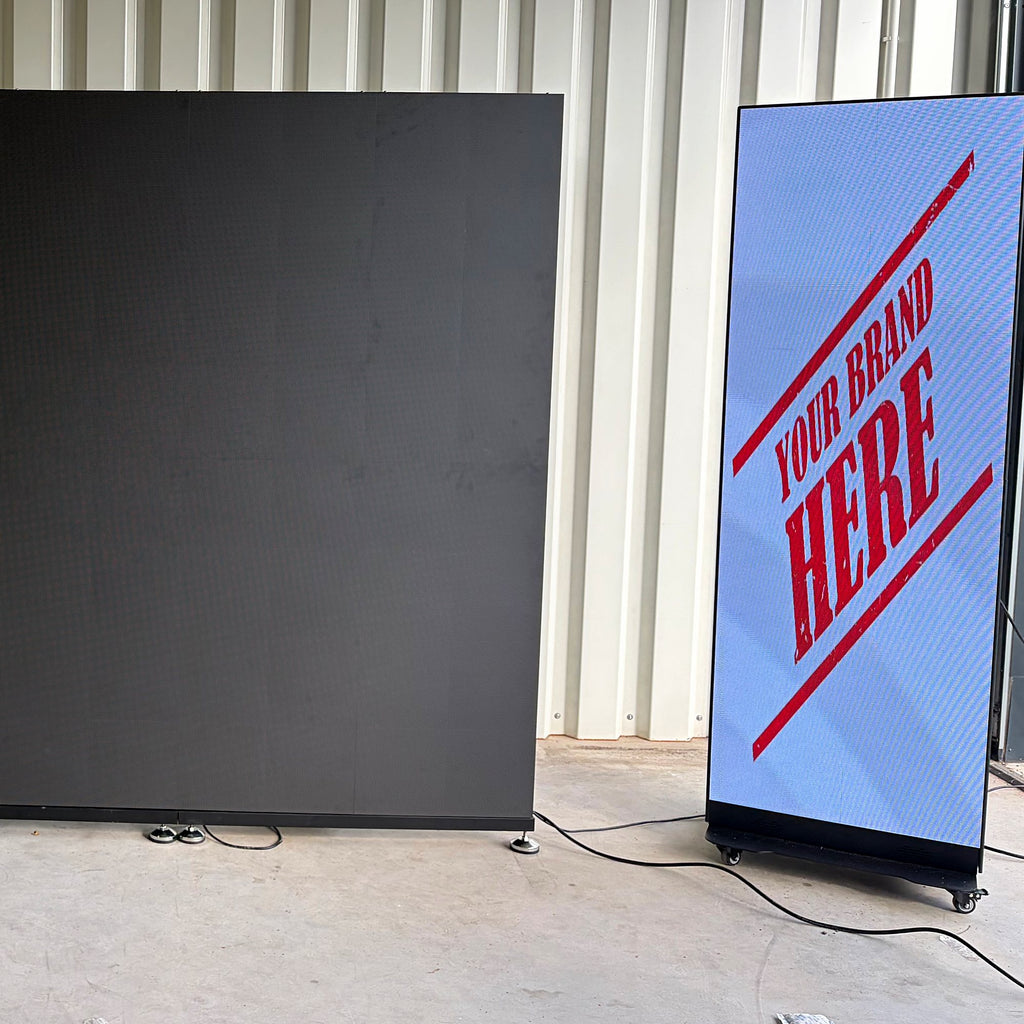

The LED Screen Poster P1.86 is the mobile, fully integrated advertising and presentation display that is ready to run in 30 seconds. Foldable double-sided screen, GOB protection and control via NovaStar or Colorlight: set it up, plug it in, done. Several posters are combinable; content is managed and scheduled centrally through the controller.
Key features

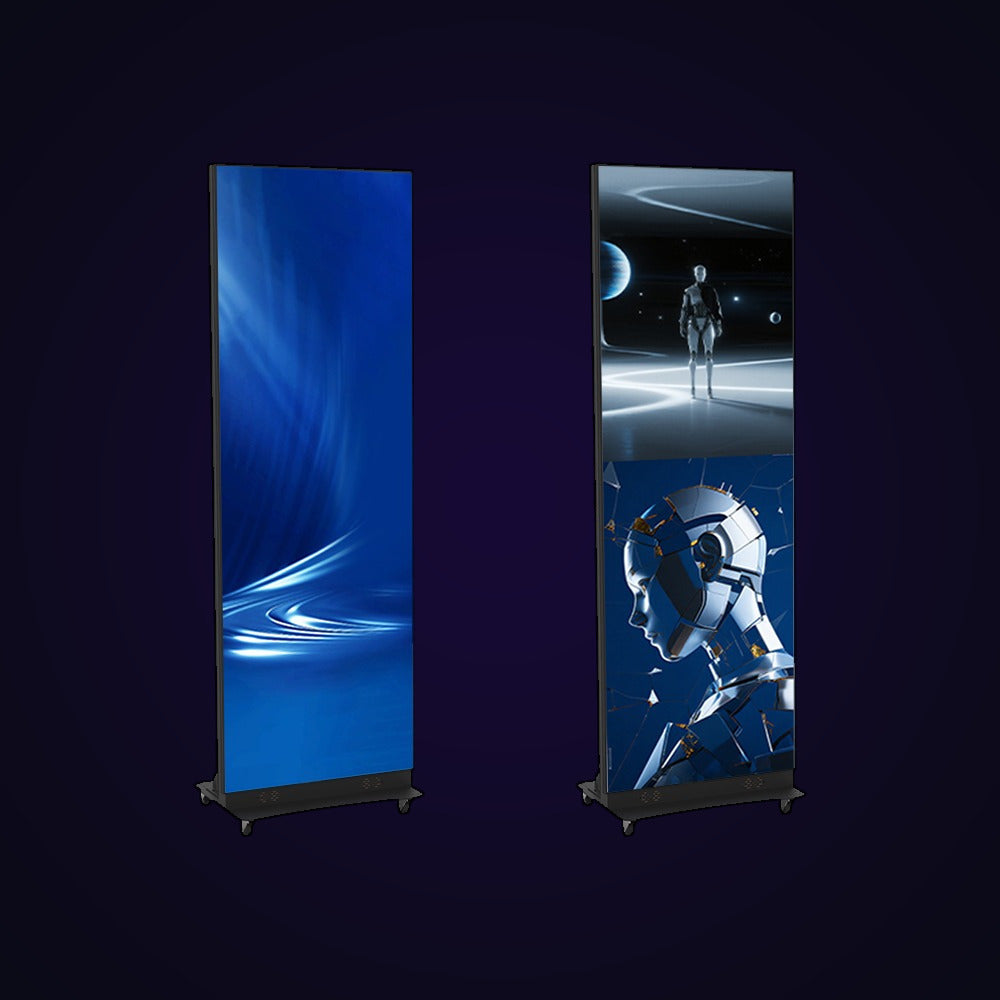

- Display modes: single-screen playback or seamless multi-screen tiling
- Screen configuration: single-sided or foldable double-sided
- Content: video, animation, image carousel, every common format supported
- Remote management: content upload and control via smartphone, tablet or PC, anytime and anywhere
- GOB protection: shock-, dust- and moisture-resistant (triple protection)
- Mobility: universal casters for 360° movement
- Plug & play: prewired connectors for processor, HDMI and power

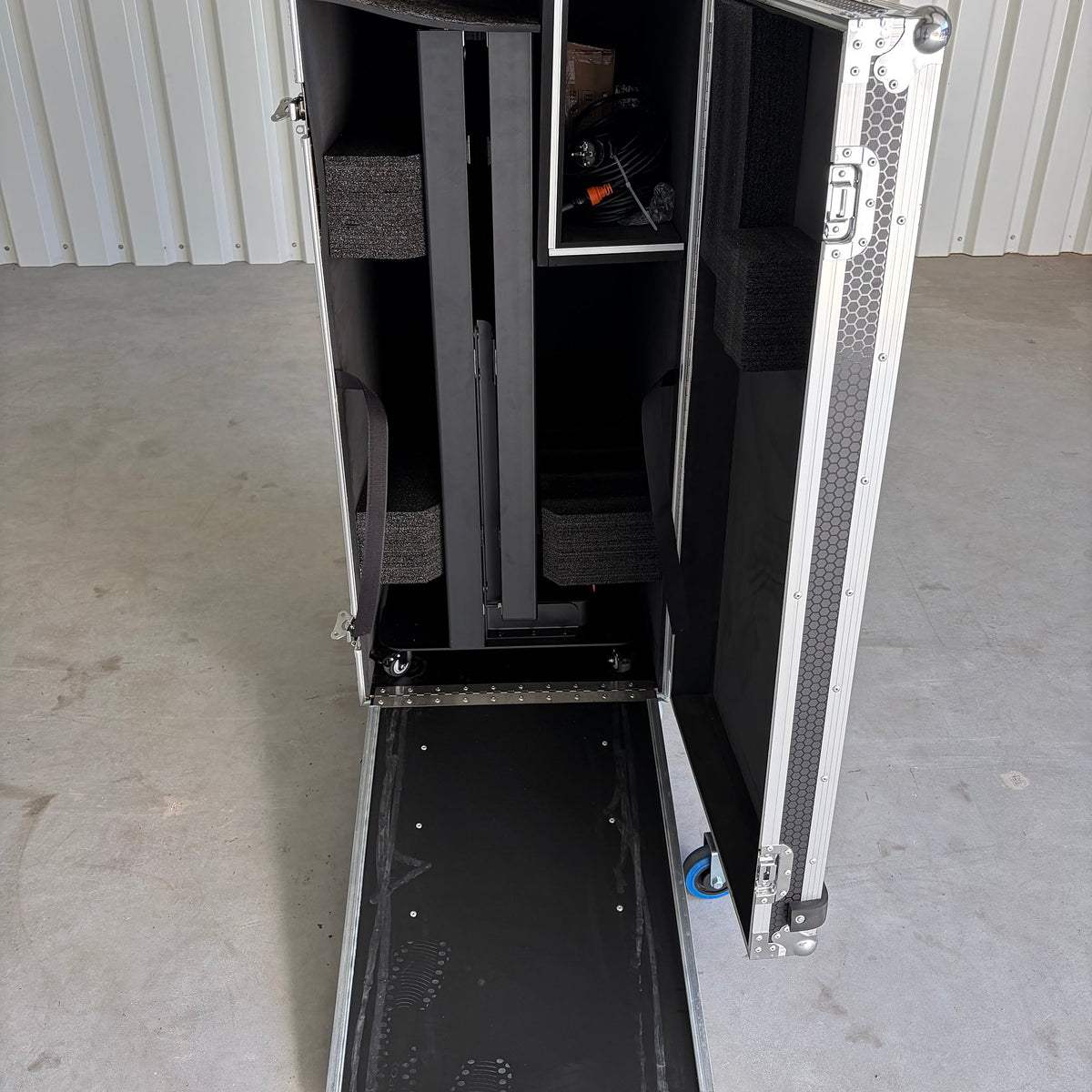

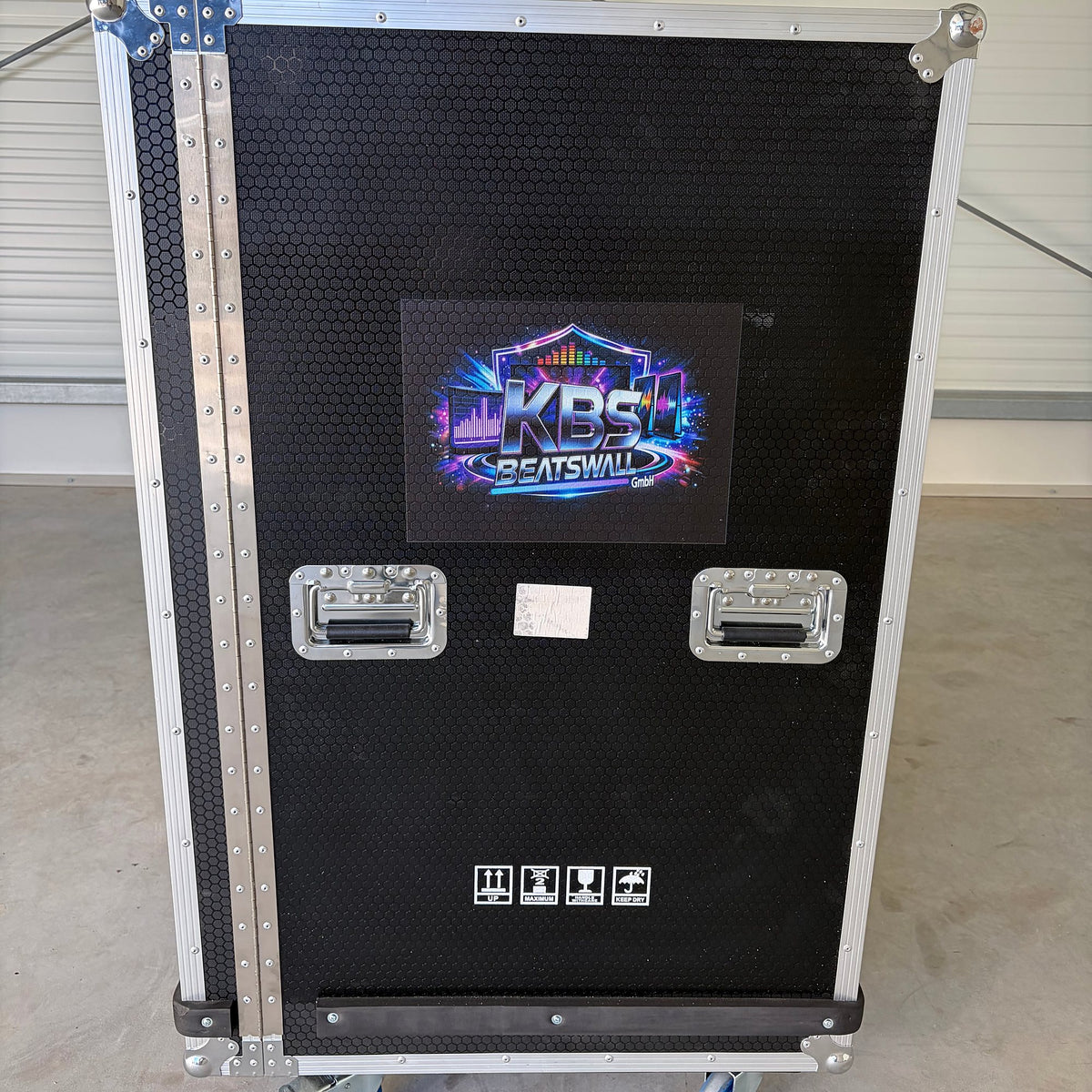

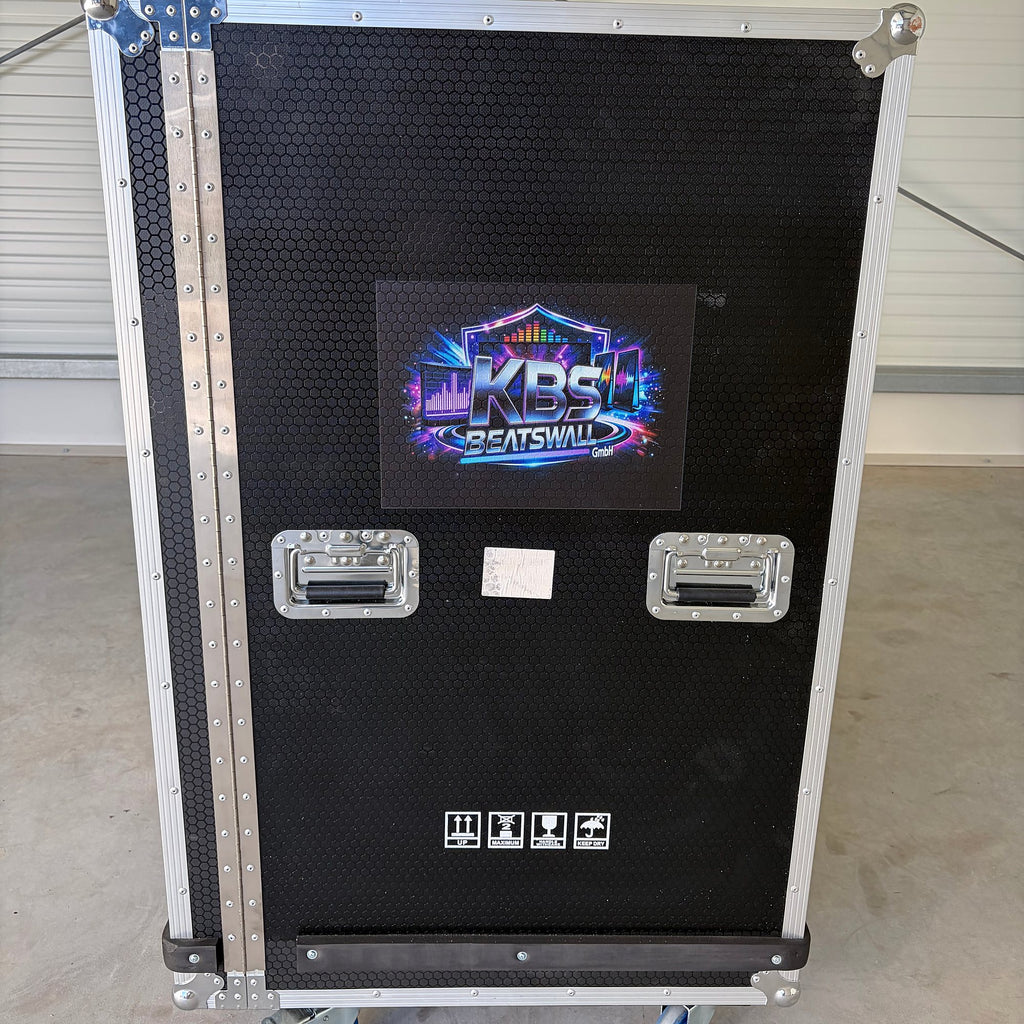

- Packaging: aviation-grade flight case for safe storage and transport
Display configurations
- Single-unit display

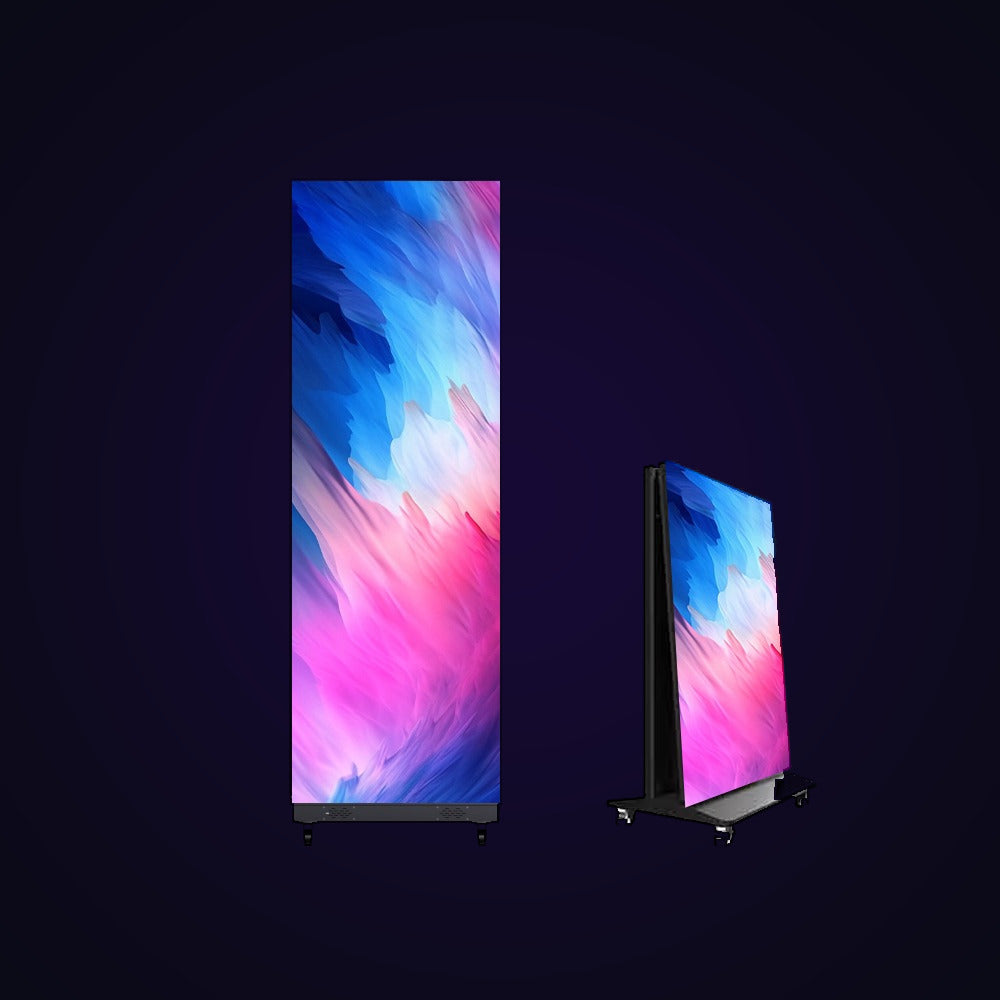

- Foldable double-sided display
- Seamless multi-unit tiling into an LED wall
At a glance
| Feature | Value |
|---|---|
| Pixel pitch | 1.86 mm |
| Resolution | 344 × 1,032 pixels |
| Display area | 640 × 1,920 mm, approx. 1.23 m² |
| Depth | 65 mm |
| Weight | 34.5 kg |
| Refresh rate | 3840 Hz |
| Brightness | at least 600 cd/m² |
| Module technology | SMD1515 with GOB surface protection |
| Form factor | foldable, single- or double-sided |
| Ingress protection | IP30 |
| Control | NovaStar or Colorlight, depending on configuration |
| Setup time | approx. 30 seconds |
| Standing | four swivel castors with brakes |

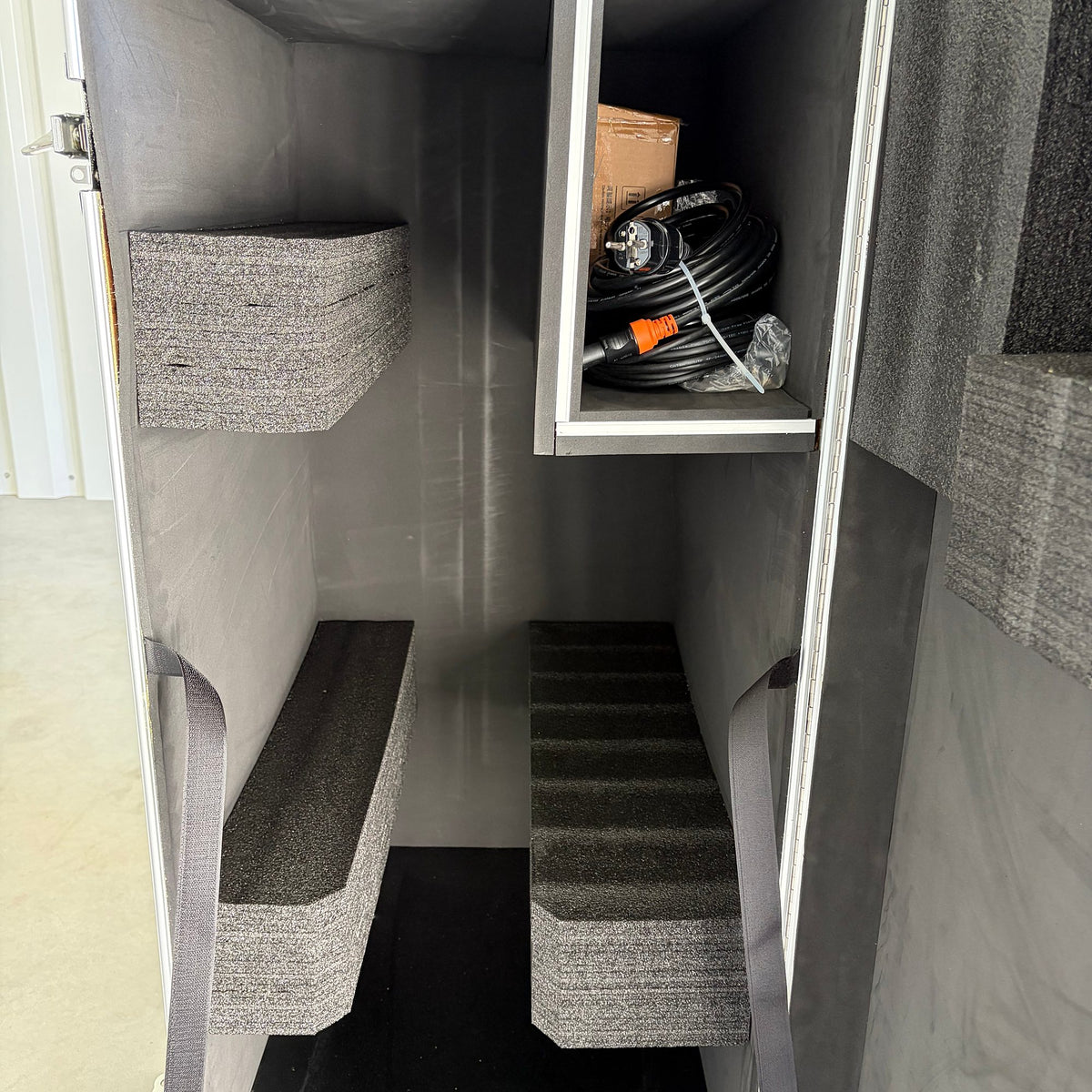

| Packaging | foldable construction, padded flight case with cable compartment |
Technical specifications
| Feature | Value |
|---|---|
| Environment | dry indoor areas |
| Pixel density | 288,888 pixels/m² |
| Grayscale | 16 bit |
| Viewing angle | 140° horizontal and vertical |
| Scan method | 1/43 scan |
| Contrast | at least 5,000:1 |
| Operating temperature | −20 °C to +50 °C |
| Maintenance | full front access to the LED modules |
| Lifetime | up to 100,000 operating hours |
| Average power draw | 150 W/m², approx. 184 W per poster |
| Maximum power draw | 400 W/m², approx. 492 W per poster |
Connections, control and media
- USB and HDMI: play media from a USB drive or connect an external HDMI source
- Internal storage: store content directly on the playback system and play it back automatically
- QR code control: scan the QR code with a smartphone, connect and play content
- Software and remote access: supplied software to control and manage content from anywhere
- Scheduling: define when, where and which videos, images, texts or data feeds play
Setup, scope of delivery and service
- Multi-unit operation: up to six posters as a shared display surface
- Scope of delivery: pre-assembled LED screen poster, cable set and flight case
- KBS warranty: 3 years within the agreed warranty scope
- KBS service: consultation, configuration, delivery and technical support by arrangement
Highlights
- Aviation-grade aluminum with 3-second folding mechanism
- Fully integrated AV system: display, controller, audio & interfaces in one device
- 30-second setup: true plug & play
- IP30: built for dry indoor areas
- Combinable: connect up to six posters via quick locks and magnetic connections into a larger surface, content scheduled centrally
- Software remote access: update content without being on site
- Unlimited content flexibility: every common format is supported
Use cases
Trade shows · Entrances · Companies · Gastronomy · Clubs · Events · Retail areas · Conferences · Visitor information and wayfinding
Service
Sale: Consultation, system assembly, delivery, setup, warranty and spare-parts service.
Rental (full service): Consultation, planning, delivery, setup, commissioning and teardown included; operation/support bookable on request.
Available to buy and to rent: delivery and setup are included, operation/support on request. See all LED screen posters, more on renting and buying.
- Buy: €2,700 per unit, including delivery and setup
- Rent: €120 / day (1 unit), monthly subscription €1,200 / month, €249 / day (2 posters), €699 / day (6 posters), including delivery, setup and teardown
All prices net, plus VAT.
- Pixel pitch
- P1.86
- Display area
- 640 × 1,920 mm
- Setup time
- approx. 30 seconds
- Posters combinable
- up to 6
Set it up, plug it in, done
The foldable double-sided screen is ready to run in about 30 seconds. Control content via QR code, software or centrally through the controller.
Ask about a poster for your event
Frequently asked questions
How many posters can I combine?
Up to six posters can be connected via quick locks and magnetic connections into a larger surface, with content scheduled centrally.
Is the poster suitable for outdoor use?
No, IP30 is designed for dry indoor areas.
Which controller is used?
NovaStar or Colorlight, depending on configuration.
What's included in the scope of delivery?
Pre-assembled LED screen poster, cable set and flight case.
Can I also rent the poster?
Yes: €120/day (1 unit), monthly subscription €1,200/month, €249/day (2 posters) or €699/day (6 posters), including delivery, setup and teardown.
